Ensuring the optimal functionality of your vehicle’s anti-lock braking system (ABS) is paramount for maintaining safe and predictable vehicle control, especially during emergency braking maneuvers. A malfunctioning ABS sensor can significantly compromise braking performance, leading to reduced stopping power and increased stopping distances. Therefore, understanding how to effectively test these crucial components is a valuable skill for both professional technicians and discerning car owners. This process, while requiring some technical knowledge and specialized tools, can be approached methodically to pinpoint faulty sensors and avoid potentially hazardous situations. Before embarking on any diagnostic procedure, it’s crucial to prioritize safety; always disconnect the battery’s negative terminal to prevent accidental short circuits or electric shocks. Furthermore, consult your vehicle’s service manual for specific instructions and diagrams pertaining to your model’s ABS system, as configurations and component locations vary considerably across different makes and models. Failure to adhere to proper safety protocols and consult relevant documentation could result in inaccurate diagnoses or, worse, damage to the vehicle’s electrical system. Remember, a comprehensive understanding of your vehicle’s ABS architecture is crucial for effective testing and repair.
Following the initial safety precautions, the testing procedure typically involves a multi-step approach, beginning with a visual inspection. Firstly, carefully examine each ABS wheel speed sensor for any visible signs of damage, such as broken wires, corrosion, or physical impact. These sensors are usually located near the wheel hub, often integrated into the wheel bearing assembly or mounted close to the wheel’s ABS tone ring. Next, utilize a digital multimeter (DMM) to check for continuity within the sensor’s wiring harness. This involves disconnecting the sensor connector and testing the resistance between the sensor’s terminals according to the specifications outlined in your vehicle’s service manual. Furthermore, it is essential to test for continuity between the sensor and its associated wiring harness connector. Any open circuits detected during this phase strongly suggest a damaged wire or a faulty sensor. However, a simple continuity check alone doesn’t fully ascertain the sensor’s functionality; it only verifies the integrity of the wiring and the sensor’s internal coils. Consequently, a more comprehensive test, often requiring a dedicated scan tool capable of reading ABS module data, is necessary to evaluate the sensor’s signal output. This specialized diagnostic equipment is capable of interpreting the sensor’s frequency signal, providing a definitive determination of its proper functioning. Moreover, discrepancies between the signals from different wheel speed sensors can indicate a specific sensor malfunction, highlighting the importance of comparing data across all sensors. Remember, a systematic approach, combining visual inspection, basic electrical testing with a DMM, and advanced diagnostics with a scan tool, is crucial for accurate diagnosis.
In addition to the multimeter and scan tool, advanced diagnostic procedures might necessitate the use of an oscilloscope. This instrument offers a more detailed analysis of the sensor’s signal waveform, allowing technicians to identify subtle irregularities that may not be apparent using only a scan tool. An oscilloscope’s ability to visualize the signal in real-time allows for a precise assessment of signal amplitude, frequency, and any anomalies in the waveform. Moreover, employing an oscilloscope is particularly beneficial when dealing with intermittent sensor faults or subtle signal degradations that may not consistently trigger diagnostic trouble codes (DTCs). For instance, a gradually degrading sensor might initially produce seemingly acceptable readings on a scan tool, yet still exhibit subtle distortions detectable only through oscilloscope analysis. Therefore, using an oscilloscope complements other diagnostic methods and significantly enhances the accuracy of the testing process. Finally, after completing all diagnostic tests, and confirming a faulty sensor, remember to replace the defective component with a genuine OEM part or a high-quality aftermarket equivalent to ensure optimal ABS performance and braking safety. Always remember to clear any stored DTCs after the repair using the scan tool to reset the ABS system and to ensure that the vehicle’s onboard diagnostics have recognized the successful resolution of the problem. Following these steps ensures accurate diagnosis and efficient repair, promoting vehicle safety and reliable braking performance.
Gathering Necessary Tools and Equipment
Before you begin testing your anti-lock brake (ABS) sensors, it’s crucial to gather the right tools and equipment. Improper tools can lead to inaccurate readings, damage to your vehicle’s electrical system, or even personal injury. Taking the time to assemble everything beforehand ensures a smooth and safe testing process. This isn’t rocket science, but careful preparation will make all the difference.
Essential Diagnostic Tools
The cornerstone of your ABS sensor testing arsenal is a reliable digital multimeter (DMM). A DMM allows you to measure voltage, resistance, and continuity – all vital parameters when assessing the functionality of an ABS sensor. Look for a DMM with a clear display, robust probes, and ideally, auto-ranging capabilities to simplify the measurement process. Don’t skimp here; a good quality DMM will serve you well for many automotive projects. A cheap meter may give unreliable readings, leading to incorrect conclusions and possibly unnecessary part replacements.
Specialized Tools for Access
Accessing ABS sensors often involves working in tight spaces under the vehicle. To make the job easier and safer, assemble the following: a sturdy jack and jack stands (never work under a vehicle supported only by a jack!), wheel chocks to secure the vehicle, and a socket wrench set with various sizes to remove the wheel. You’ll also need a ratchet and extensions, potentially a breaker bar for stubborn bolts, and possibly a torque wrench to properly reinstall the wheel afterwards. Having the correct size sockets and extensions will prevent you from rounding off the wheel nuts or damaging the sensor itself. A small mirror or inspection camera can help you visually inspect the sensor and its connector.
Safety Gear is Paramount
Safety should always be your top priority. Wear safety glasses to protect your eyes from flying debris or accidental contact with tools. Working under a vehicle requires extra caution; never work alone. Gloves will protect your hands from grease, dirt, and potential sharp edges. Consider using a creeper to comfortably work under the vehicle. Remember, this job involves working with electricity, so taking appropriate precautions is non-negotiable.
Helpful Additional Items
While not strictly necessary for the testing process, having a few extra items on hand can greatly simplify the task and improve the accuracy of your results. These include a wire brush to clean corrosion from the sensor connector, electrical contact cleaner to ensure a good connection, and some dielectric grease to protect the sensor connector from moisture and corrosion after reassembly. A shop manual specific to your vehicle’s make and model can also prove invaluable, providing detailed diagrams and specifications related to the ABS system.
Summary of Essential Tools
| Tool Type | Specific Item(s) | Purpose |
|---|---|---|
| Diagnostic Tool | Digital Multimeter (DMM) | Measure voltage, resistance, and continuity |
| Vehicle Access | Jack, Jack Stands, Wheel Chocks, Socket Wrench Set, Ratchet, Extensions, Breaker Bar (possibly), Torque Wrench (possibly) | Safely lift and secure the vehicle, remove and reinstall the wheel |
| Safety Equipment | Safety Glasses, Gloves, Creeper | Protect yourself from injury |
| Additional Items | Wire Brush, Electrical Contact Cleaner, Dielectric Grease, Vehicle Shop Manual | Facilitate cleaning, connection enhancement, and maintenance |
Locating the Anti-lock Brake (ABS) Sensors
Understanding ABS Sensor Placement
Before you even think about testing, you need to know where to look! ABS sensors are strategically placed on your vehicle to monitor wheel speed. Their location varies slightly depending on the make, model, and year of your car, but they generally follow a consistent pattern. Expect to find them near the wheel hubs, often integrated into the wheel speed sensor (WSS). They’re usually tucked away, sometimes requiring a bit of detective work to uncover. Don’t be afraid to consult your vehicle’s repair manual; it’s your best friend during this process. The manual will provide detailed diagrams showing the exact location of each sensor.
Detailed Search Strategies for ABS Sensors
Visual Inspection: The First Step
Start with a visual inspection. Get down low and look around each wheel. The sensors themselves are typically cylindrical components, often with a wiring harness attached. They might be easily visible, especially if you have alloy wheels. However, if your car has steel wheels and hubcaps, you’ll likely need to remove the wheels to gain access. Remember safety first: use jack stands and chocks to secure your vehicle properly before getting underneath.
Tracing the Wiring Harness
If you’re struggling to pinpoint the sensors directly, try tracing the wiring harness. ABS sensor wiring is usually a distinct color (check your vehicle’s manual) and often runs along a protected route, near suspension components or within the chassis. Following this harness can lead you directly to the sensors themselves. It’s a bit like following a breadcrumb trail – meticulously follow the wires, and you’ll eventually find what you’re looking for.
Wheel Removal: The Necessary Step for Difficult Cases
Sometimes, direct visual inspection isn’t enough. If your initial efforts prove fruitless, removing the wheels is the next logical step. This grants unparalleled access to the wheel hubs and the area surrounding them. Remember to properly secure the vehicle before doing so, and always consult your owner’s manual for correct wheel removal procedures. Once the wheel is off, the sensor is usually quite apparent. Take your time and be gentle to avoid damage.
Using a Repair Manual: Your Ultimate Guide
Your car’s repair manual is invaluable. It includes diagrams that specifically show where the ABS sensors are located for your particular model. These diagrams are often detailed and easy to understand, showing both the sensor location and the surrounding components. Don’t underestimate the power of this resource; it can save you a significant amount of time and frustration.
| Wheel Location | Typical Sensor Appearance | Possible Obstructions |
|---|---|---|
| Front Left | Cylindrical, with a wiring harness | Brake caliper, suspension components |
| Front Right | Similar to Front Left | Brake caliper, suspension components |
| Rear Left | May be slightly different in design | Brake caliper, suspension components, exhaust |
| Rear Right | May be slightly different in design | Brake caliper, suspension components, exhaust |
Remember, safety is paramount. Always use proper jack stands and chocks to secure the vehicle before working underneath. If you are unsure about any aspect of this process, it’s always best to consult a qualified mechanic.
Visually Inspecting the ABS Sensors for Damage
Inspecting the Sensor’s Physical Condition
Before you even think about using a multimeter, a thorough visual inspection is crucial. This initial step can often pinpoint the problem quickly, saving you time and effort. Start by locating the ABS sensors themselves. These are typically found near the wheel hubs, often embedded within or close to the wheel speed sensor rings (sometimes called tone rings). These rings are usually made of metal with evenly spaced teeth or notches. Their appearance will vary slightly depending on the vehicle’s make and model. Remember to consult your vehicle’s repair manual or a reliable online resource specific to your car’s year, make, and model to confirm the exact location of your ABS sensors.
Signs of Physical Damage
Once you’ve located the sensors, carefully examine them for any obvious signs of damage. This includes looking for:
- Broken or Damaged Wires: Check the wiring harness leading to the sensor for any cuts, frays, or exposed wires. Loose connectors or corrosion at the connection points are also common culprits. A damaged wire can easily disrupt the signal transmission from the sensor to the ABS module.
- Bent or Damaged Sensor Tip: The sensor tip is the part that interacts with the tone ring. Even a minor bend or scratch on this critical area can significantly affect the sensor’s ability to accurately read the wheel’s speed. A heavily damaged or missing tip will almost certainly render the sensor useless.
- Dirt and Debris Buildup: Excessive dirt, grime, or metal shavings accumulated on the sensor tip or the tone ring can interfere with the sensor’s performance. This buildup can act as an insulator, preventing proper signal transmission.
- Corrosion: Look for signs of rust or corrosion on the sensor itself or its connector. Corrosion can degrade the electrical connection and lead to intermittent or complete sensor failure.
It’s helpful to have a clean cloth or brush handy to gently wipe away any dirt or debris. This will allow for a clearer view of the sensor and its surrounding components. Remember, even small imperfections on the sensor tip or tone ring could be causing problems.
Assessing the Tone Ring Condition
The tone ring is just as important as the sensor itself. A damaged tone ring can make the ABS sensor’s job impossible, even if the sensor is perfectly fine. The tone ring is a crucial component because it provides the signal the sensor uses to measure wheel speed. Its condition is therefore paramount for proper ABS function.
Examine the tone ring for the following issues:
| Problem | Description |
|---|---|
| Missing Teeth | Missing or damaged teeth on the tone ring will lead to inaccurate speed readings and subsequently trigger ABS faults. |
| Bent or Damaged Ring | A severely bent or damaged tone ring will completely disrupt the signal to the ABS sensor, preventing accurate speed detection. |
| Excessive Rust or Corrosion | Corrosion on the tone ring can cause the same issues as corrosion on the sensor; it impedes the sensor from reading the speed signal correctly. |
If you notice any of these issues with the tone ring, it’s likely the root cause of the ABS problem. Repair or replacement of the tone ring may be required.
Checking ABS Sensor Wiring for Continuity and Integrity
1. Gather Your Tools and Materials
Before you begin testing your anti-lock brake system (ABS) sensor wiring, gather the necessary tools. You’ll need a digital multimeter (DMM) capable of measuring resistance and continuity, a wiring diagram specific to your vehicle’s make and model (often found in a repair manual or online), and a set of insulated wire probes compatible with your DMM. Safety glasses are also recommended to protect your eyes from any potential sparks or debris.
2. Locating the ABS Sensors and Connectors
Consult your vehicle’s wiring diagram to identify the location of your ABS wheel speed sensors. Typically, these sensors are mounted near the wheel hubs, often close to the brake calipers or the axle. Once located, carefully inspect the connectors for any signs of damage, such as corrosion, broken wires, or loose connections. Take note of the color codes of the wires as they will be referenced in the testing process.
3. Disconnecting the ABS Sensor Connectors
Before proceeding with any electrical testing, it is crucial to disconnect the electrical connectors from the ABS sensors. This prevents accidental short circuits or damage to the vehicle’s electrical system. Carefully unplug the connectors, paying attention to how they detach to ensure you can reassemble them correctly later. If the connectors are difficult to remove, use a small flathead screwdriver to gently pry them apart, but avoid damaging the connector tabs or wires.
4. Checking ABS Sensor Wiring for Continuity and Integrity
Now, it’s time to use your DMM to test the wiring for continuity and integrity. First, set your DMM to the continuity test mode, usually symbolized by a diode or a “beep” icon. This setting checks for a complete circuit between two points. Your DMM will typically beep if a complete circuit exists, indicating continuity.
Begin by testing the continuity of each wire within the ABS sensor connector. Using your probes, touch one probe to each terminal of the connector. If the DMM beeps and indicates continuity, that wire is intact. If the DMM does not beep, there’s an open circuit, indicating a break in the wire. You’ll need to trace the wire to find the break and repair it. Repeat this process for every wire in the connector.
Next, check the resistance of each wire to ground. Set your DMM to the ohms setting (usually represented by the Greek letter Omega, Ω). Connect one probe to a wire in the connector and the other probe to a known good ground point (such as an unpainted metal part of the chassis). A very high resistance reading (or open circuit) means that the wire is not properly grounded or there’s a break in the circuit. A very low resistance may indicate a short circuit to ground. Your vehicle’s repair manual or a reliable online source should provide acceptable resistance ranges for your vehicle’s ABS wiring.
To ensure your results are accurate, always refer to your vehicle’s wiring diagram. This document provides information regarding the color-coded wires, their functions, and any specific resistance values expected. It’s important to be methodical and patient, testing each wire individually and meticulously recording your findings.
| Test | Expected Result | Possible Issues |
|---|---|---|
| Continuity Test (wire to wire) | DMM beeps, indicating continuity. | Open circuit (broken wire); faulty connector. |
| Resistance Test (wire to ground) | Low resistance within acceptable range (consult your vehicle’s manual). | High resistance (broken wire, poor ground connection); short circuit to ground. |
5. Reassembling and Testing
Once you’ve completed the continuity and resistance tests and made any necessary repairs, carefully reassemble the connectors and test the ABS system to ensure proper functionality.

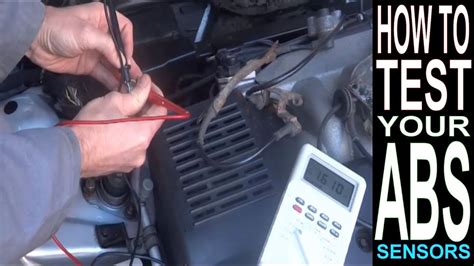

Measuring ABS Sensor Resistance with a Multimeter
Understanding ABS Sensor Resistance
Before you start testing, it’s crucial to understand what you’re looking for. An ABS sensor is essentially a variable reluctance sensor. It produces a fluctuating voltage signal as the wheel rotates, reflecting the speed of the wheel. This signal is interpreted by the ABS control module. A faulty sensor might show an incorrect resistance, an open circuit (infinite resistance), or a short circuit (zero resistance). Knowing the expected resistance range for your specific vehicle model is key; this information can usually be found in a repair manual or online automotive databases. Always consult your vehicle’s service manual for the correct specifications.
Preparing for the Test
Gather your tools: a multimeter (capable of measuring resistance), a wiring diagram for your vehicle’s ABS system, and a reliable repair manual. Disconnect the negative terminal of your vehicle’s battery before starting any electrical tests—this is a vital safety precaution to prevent accidental shorts and damage to your vehicle’s electrical system. Locate the ABS sensor; it’s usually found near the wheel hub, and you may need to remove a wheel to access it fully. Once located, carefully disconnect the sensor’s wiring harness connector.
Setting Up Your Multimeter
Set your multimeter to the ohms (Ω) setting. Ensure the leads are properly connected to the multimeter’s input jacks—typically, a red lead for the positive terminal and a black lead for the negative terminal. Many multimeters have different ohms ranges; it’s best to start with a lower range (like 200 Ω) and adjust it upwards if necessary. A high range might not provide accurate readings for the relatively low resistance of an ABS sensor. A higher range reading is often indicated by a “1” in the display.
Testing the ABS Sensor for Continuity
With the sensor disconnected, carefully probe each wire in the harness connector with the multimeter leads. You should measure the resistance between the two wires of the sensor’s connector. The reading should be within the specified range given in your vehicle’s service manual. A reading of zero ohms (0Ω) indicates a short circuit, whereas an infinite resistance (OL or similar indication) means an open circuit – both are signs of a faulty sensor. Note that some sensors may have three wires.
Interpreting the Results: Detailed Analysis of Resistance Readings
The resistance reading you obtain should fall within a specific range documented in your vehicle’s service manual. This range varies depending on the make, model, and year of your vehicle, as well as the specific sensor location (front left, front right, rear left, rear right). A reading outside this range indicates a potential problem. Let’s say your manual specifies a resistance between 1000 Ω and 1500 Ω. A reading of 500 Ω suggests a possible internal short, while a reading of 2000 Ω might hint at a developing open circuit or a problem elsewhere in the wiring. Always cross-reference your findings with the specific resistance values and tolerance ranges outlined in your vehicle’s documentation. Inconsistencies or readings far outside the specified range strongly suggest a faulty ABS sensor requiring replacement. It’s crucial to remember that even a small deviation beyond the tolerance range could affect the sensor’s performance and negatively impact the ABS system’s functionality. Therefore, always refer to the manufacturer’s specifications for the most accurate interpretation of your results. Consider repeating the measurement several times to ensure accuracy and consistency.
| Reading | Possible Indication |
|---|---|
| 0 Ω | Short circuit in the sensor or wiring |
| Infinite Ω (OL) | Open circuit in the sensor or wiring |
| Outside specified range | Faulty sensor or wiring issue |
| Within specified range | Sensor is likely functioning correctly (but further checks may be needed) |
Testing ABS Sensor Output Voltage
Understanding the ABS Sensor’s Voltage Output
The anti-lock braking system (ABS) relies on wheel speed sensors to monitor the rotation of each wheel. These sensors, often magnetic or hall-effect types, generate a voltage signal that fluctuates proportionally to the wheel’s speed. A stationary wheel produces a constant voltage (often near zero), while a rotating wheel generates a rapidly changing AC voltage waveform. This waveform’s frequency directly correlates to the wheel’s rotational speed; higher frequency means faster rotation. The ABS control module interprets these signals to determine if a wheel is locking up and, if necessary, intervenes to prevent this.
Gathering Necessary Tools and Equipment
Before beginning the test, gather the following: a digital multimeter (DMM) capable of measuring both AC and DC voltage, a wiring diagram specific to your vehicle’s ABS system (consult your vehicle’s repair manual), safety glasses, and appropriate workshop gloves. You will also need access to your vehicle’s electrical system, potentially requiring the removal of components such as wheel covers or trim panels to reach the ABS sensor connectors. Remember to disconnect the negative (-) battery terminal before starting any electrical work – this is a crucial safety precaution.
Locating the ABS Wheel Speed Sensors
The ABS sensors are usually located near each wheel hub, often integrated into the wheel bearing assembly or mounted nearby on the suspension. Consult your vehicle’s repair manual for their exact locations; they might be difficult to spot without a diagram. These sensors are relatively small and may be shielded by wheel covers or other components. Carefully remove any obstructions to gain access. Remember, working with the vehicle’s suspension and brakes requires caution.
Disconnecting the ABS Sensor Connector
Once you’ve located the sensor, carefully disconnect the electrical connector. The connector type will vary depending on the vehicle’s make and model. Inspect the connector for any signs of damage, corrosion, or loose connections. Clean any debris or corrosion if present using a suitable electrical contact cleaner. Gently disconnect the connector to avoid damaging pins or wires. Take note of the connector’s orientation before disconnecting to ensure correct reassembly later.
Preparing the Multimeter for AC Voltage Measurement
Set your digital multimeter (DMM) to measure AC voltage (typically indicated by a symbol resembling a sine wave). Select an appropriate voltage range; most ABS sensor outputs produce relatively low AC voltages, usually less than 5 volts. Starting with a higher range is advisable to avoid overloading the meter if the voltage is unexpectedly high. Ensure the DMM’s leads are securely connected to the correct terminals (positive (+) and negative (-)) for AC voltage measurement.
Testing the ABS Sensor Output Voltage (Detailed Procedure)
Inspecting the Sensor Connector
Before connecting the multimeter, carefully inspect the sensor connector pins for any signs of damage, corrosion, or bent pins. Bent or corroded pins can significantly affect the sensor’s ability to generate a proper signal. If any damage is found, consider repair or replacement of the connector. Wires leading to the connector should be inspected for any cuts, abrasions, or frays which could lead to short circuits or open circuits.
Connecting the Multimeter
Connect the DMM’s leads to the corresponding terminals of the ABS sensor connector. Refer to your vehicle’s wiring diagram to ensure proper connection. Carefully insert the leads into the connector pins, avoiding any accidental short circuits. Be gentle to prevent damaging the delicate pins. Make sure the multimeter’s probes have a good connection to the sensor’s connector pins; a poor connection might cause inaccurate readings.
Rotating the Wheel
With the multimeter connected, slowly rotate the wheel by hand. Observe the DMM’s reading. You should see a fluctuating AC voltage reading. The amplitude and frequency of this voltage will increase as the wheel rotates faster. The waveform may not be a perfect sine wave; some irregularities are expected. If you have a partner to assist, they can rotate the wheel while you watch the multimeter’s display.
Analyzing the Readings
Note the range of the AC voltage readings. A typical output might vary from near zero volts when stationary to several volts while rotating. If the voltage reading remains consistently low or zero even when the wheel is rotated, it suggests a problem with the sensor, wiring, or connector. If the voltage reading is erratic or noisy, this may point to a faulty sensor or connector issue. Compare your readings to factory specifications or values documented in your repair manual for better interpretation.
Troubleshooting based on Readings
If the sensor is producing no output, there could be a broken wire, a faulty sensor, or a connector issue. You’ll need to visually inspect the wiring harness and the sensor connector itself. If the output is erratic, the sensor might be failing, or there could be interference from other nearby electrical components. Consider checking for any grounding issues or corrosion that might be affecting the sensor’s signal integrity. This step often requires a deeper investigation, potentially using a professional-grade diagnostic tool.
| Expected Reading (Rotating Wheel) | Possible Issues |
|---|---|
| Fluctuating AC voltage (several volts peak-to-peak) | Sensor functioning correctly. |
| No voltage change | Faulty sensor, broken wire, bad connector, or poor connection. |
| Erratic or noisy voltage | Faulty sensor, wiring problems, or electrical interference. |
Utilizing an OBD-II Scanner to Read ABS Sensor Data
Understanding OBD-II and ABS Sensor Data
Modern vehicles are equipped with an On-Board Diagnostics II (OBD-II) system, a standardized diagnostic interface. This system allows mechanics and technically inclined individuals to access a wealth of information about the vehicle’s various systems, including the Anti-lock Braking System (ABS). The ABS system relies on wheel speed sensors to detect wheel slippage during braking. These sensors constantly monitor wheel rotation, sending data to the ABS control module (ABS-CM). The ABS-CM uses this data to determine if a wheel is locking up and intervenes by modulating brake pressure to maintain control.
Choosing the Right OBD-II Scanner
Not all OBD-II scanners are created equal. While a basic code reader will display trouble codes, a more advanced scanner—often referred to as a “professional-grade” or “enhanced” scanner—is needed to access live ABS sensor data. These advanced scanners often have a larger screen, more intuitive interfaces, and the capability to display data in graphical form. Look for scanners that explicitly state their ability to read ABS data in their specifications. Consider features like data logging (recording data over time) for more thorough analysis.
Connecting the Scanner
The OBD-II port is typically located under the dashboard, often near the steering column. It’s a 16-pin connector. Simply plug the OBD-II scanner into this port. The vehicle’s ignition should be turned on (but the engine doesn’t need to be running). The scanner will power up and automatically communicate with the vehicle’s computer. Make sure your scanner is compatible with your vehicle’s make, model, and year.
Navigating the Scanner’s Menu
Once connected, use the scanner’s navigation buttons to access the ABS data. The specific menu structure varies depending on the scanner’s brand and model. Look for menus labeled “ABS Data,” “Sensor Data,” “Wheel Speed Sensors,” or similar terms. You might need to select your vehicle’s year and model to access the correct data stream.
Interpreting Wheel Speed Sensor Data
The scanner will display the rotational speed of each wheel, usually in revolutions per minute (RPM) or kilometers per hour (km/h). Compare the readings from each wheel. Significant discrepancies between the readings—for instance, one wheel showing zero speed while the others are rotating—suggest a potential problem with that specific wheel speed sensor or its wiring.
Identifying ABS Trouble Codes
Along with live sensor data, the OBD-II scanner will likely provide trouble codes (DTCs). These codes are alphanumeric sequences that point to specific problems within the vehicle’s systems. These codes are crucial for diagnosing ABS problems. Refer to a repair manual or online DTC database (many are available for free) to decipher the meaning of the codes. This will help pinpoint the exact component causing the issue.
Analyzing Data for Malfunctioning Sensors (Detailed Explanation)
Analyzing the ABS sensor data requires a methodical approach. First, ensure you understand your scanner’s data presentation. Some scanners display data numerically, others graphically. A graphical representation can be extremely helpful in visualizing differences in wheel speeds during braking or acceleration. For numerical data, pay close attention to discrepancies between the reported speeds of each wheel. Significant differences – say, one wheel consistently reading 50% lower than the others at the same speed – strongly suggests a faulty sensor. Furthermore, observe the data during dynamic testing. Drive at a consistent speed, then lightly brake. A malfunctioning sensor may display erratic readings, sudden drops to zero, or inconsistent fluctuations during this test. If the speed of a wheel is consistently zero (or near zero) regardless of vehicle movement, this is a critical indicator of a sensor issue. It’s also helpful to compare the data across several test runs. A single anomalous reading could be a glitch, but repeated inconsistencies point to a persistent problem. Finally, consult your vehicle’s repair manual; it may provide specific acceptable ranges for wheel speed differences or provide guidance on diagnosing sensor faults based on the sensor’s output.
| Symptom | Possible Cause | OBD-II Data Indication |
|---|---|---|
| ABS light illuminated | Faulty sensor, wiring, or ABS module | Specific DTC code, inconsistent wheel speed readings |
| ABS system not functioning | Sensor failure, low voltage, or ABS module malfunction | Zero or erratic wheel speed readings from affected wheel |
| Erratic braking behavior | Intermittent sensor failure or wiring issue | Fluctuating or inconsistent wheel speed readings |
Troubleshooting Further Issues
If your OBD-II scanner indicates a problem with your ABS sensor, further diagnostics may be required. This could involve visually inspecting the sensor and its wiring for damage or corrosion. You might need to use a multimeter to test the sensor’s voltage and signal output. If the problem persists after these checks, a professional mechanic should be consulted for a proper diagnosis and repair.
Performing a Road Test to Evaluate ABS Functionality
Preparing for the Road Test
Before embarking on your ABS road test, ensure your vehicle is in optimal condition. Check tire pressure, ensuring it aligns with the manufacturer’s recommendations. Proper tire inflation is crucial for accurate ABS performance assessment. Inspect your brake pads and rotors for wear; excessively worn components can interfere with the test results. A visual inspection for any obvious damage to brake lines or components is also prudent. Finally, select a safe, controlled environment for testing—a large, empty parking lot is ideal, allowing you ample space to perform maneuvers without endangering yourself or others.
Understanding the Test Parameters
The goal of this road test is not to induce a skidding scenario in a dangerous manner, but to observe the ABS’s behavior under controlled, simulated emergency braking situations. You’re looking for the telltale signs of ABS activation—the pulsing feeling in the brake pedal and the potential slight vibration in the steering wheel. Remember, the ABS is designed to prevent wheel lock-up, not to shorten braking distances significantly, although you should still notice a considerable difference compared to a vehicle without ABS.
The Controlled Braking Test
Start by finding a suitable, flat surface. Drive at a moderate speed—approximately 20-25 mph—approaching a clearly visible stopping point. Then, firmly and steadily apply the brakes, maintaining even pressure. As your speed diminishes, pay close attention to the brake pedal’s response. You should perceive a pulsating sensation or a slight pulsing in the pedal. This indicates the ABS is actively managing wheel speed and preventing lockup. If the pedal remains firm and doesn’t pulse, there might be a problem with the system. Repeat this test several times to confirm your observations.
Emergency Braking Simulation
Next, simulate an emergency braking scenario. Again, start at a moderate speed (20-25 mph), and this time, apply the brakes forcefully and suddenly. This more aggressive braking will provide a clearer indication of ABS function. As before, pay attention to the brake pedal’s response. The ABS should activate, and you should feel the pulsating effect. The vehicle should remain controllable, preventing skidding and allowing you to steer during the braking process. The key difference between this test and the controlled braking test lies in the intensity of braking pressure applied.
Evaluating Steering Response
During both controlled and emergency braking tests, pay attention to the steering response. While the ABS is actively engaged, you should retain sufficient control over your vehicle’s steering. If you find it difficult to steer while braking, this could point to an issue with the ABS or another component of the braking system. A correctly functioning ABS maintains steering control even under emergency braking conditions. It’s crucial to observe and compare the steering feel to what would happen without ABS, allowing the wheels to lock under braking
Analyzing the Braking Distance
While the primary function of ABS is to prevent wheel lockup, not to reduce overall braking distance, you can still use braking distance as a relative indicator of system health. If you notice a significant increase in braking distance compared to normal braking, even if ABS engages, this could suggest other issues within the braking system such as worn brake pads or a hydraulic problem. However, it is important to realize that braking distances can vary considerably based on several factors including road conditions, tire type, and even ambient temperature.
Interpreting the Results
If the ABS activates as expected during both tests (controlled and emergency braking), with a noticeable pulsating feel in the brake pedal, you can generally assume that your ABS is functioning correctly. However, consistent lack of pulsing during firm braking suggests a potential issue. If you experience difficulty steering during braking, this warrants further investigation of your braking system components. Remember, a properly functioning ABS will not always lead to a significant reduction in stopping distance but should significantly improve the vehicle’s control and steering during hard braking, preventing skidding.

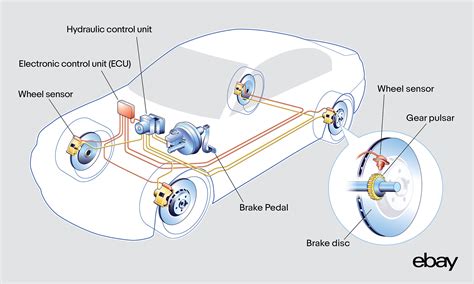

Understanding ABS System Components and Their Potential Failures
The ABS system comprises several key components, each capable of causing system failure. A malfunctioning wheel speed sensor, for instance, could prevent the ABS from accurately monitoring wheel speed, leading to erratic ABS activation or complete system failure. Similarly, issues with the hydraulic control unit, which manages the hydraulic pressure to individual wheels, can cause erratic behaviour. The ABS module itself can also fail. A faulty modulator valve will affect pressure distribution and the ABS pump might fail to provide the necessary pressure to release wheel lock up. A comprehensive diagnostic check by a qualified mechanic is crucial if you suspect an ABS malfunction.
| Component | Potential Failure Mode | Symptom |
|---|---|---|
| Wheel Speed Sensor | Wiring fault, sensor malfunction | ABS warning light, erratic ABS activation, or no ABS activation |
| Hydraulic Control Unit | Internal leakage, electronic failure | Spongy brake pedal, inconsistent braking, ABS malfunction |
| ABS Module | Electronic failure | ABS warning light, ABS inoperative |
| Modulator Valve | Internal leakage, sticking valves | Inconsistent braking, ABS malfunction |
| ABS Pump | Motor failure, hydraulic pump failure | No ABS activation during braking |
Interpreting Test Results and Troubleshooting Potential Issues
Interpreting ABS Sensor Test Results
Once you’ve performed the tests on your anti-lock brake system (ABS) sensors, understanding the results is crucial for effective troubleshooting. A failed test usually indicates a problem with either the sensor itself, the wiring, or the ABS control module. Let’s break down what different results might mean.
A successful test typically shows a consistent voltage output within a specific range as the sensor wheel rotates. This indicates the sensor is correctly detecting wheel speed and transmitting that information accurately to the ABS module. You’ll usually see this displayed on your diagnostic tool as a steady, fluctuating voltage that corresponds directly with wheel speed. A perfectly still reading, however, suggests a problem: either a broken wire, a faulty sensor, or a dead battery in your diagnostic tool.
Conversely, a failed test might manifest in several ways. You might see no voltage output whatsoever, suggesting a complete circuit break. An intermittent voltage output could point to a loose connection or a damaged wire experiencing poor contact. Erratic or wildly fluctuating voltage, outside of the expected range, usually points to a failing sensor or a problem with the sensor’s signal processing.
Troubleshooting Potential Issues
Troubleshooting ABS sensor problems requires a systematic approach. The first step is always to visually inspect the sensor and its wiring harness for any obvious damage, such as broken wires, corrosion, or physical damage to the sensor itself. Look closely at the connection points for any signs of looseness, corrosion or damage.
Checking Wiring and Connections
Next, meticulously check the wiring harness leading to the sensor for any breaks, shorts, or loose connections. Use a multimeter to test continuity throughout the wiring to confirm a complete circuit. Pay close attention to the sensor connector; ensure it’s securely attached and free of corrosion.
Testing the Sensor Itself
If the wiring checks out, it’s time to isolate the sensor as the potential problem. This might involve using a known-good sensor for comparison. You can try swapping sensors between wheels (if your vehicle allows for this) and see if the problem follows the sensor to the different wheel. Remember to consult your vehicle’s service manual for correct procedures and safety precautions.
Investigating the ABS Control Module
If both the wiring and the sensor appear to be functioning correctly, the issue might lie within the ABS control module itself. This is a more complex problem that typically requires specialized diagnostic tools and potentially professional repair. The module might have failed internally or it might be simply misinterpreting data from the sensors. Incorrect data being sent to the module can result from various problems with the wiring, the sensor, or the ABS ring (the toothed wheel that the sensor reads).
Understanding ABS Sensor Readings
The following table summarizes typical ABS sensor test results and their potential causes:
| Test Result | Potential Cause |
|---|---|
| No voltage output | Broken wire, faulty sensor, bad connection |
| Intermittent voltage output | Loose connection, damaged wire, corroded connector |
| Erratic or fluctuating voltage | Failing sensor, damaged ABS ring, electrical interference |
| Consistent voltage within expected range | Sensor functioning correctly |
Remember, working with automotive electrical systems can be dangerous. If you’re not comfortable performing these tests yourself, consult a qualified automotive technician. Incorrect diagnosis or repair can lead to brake failure and serious injury.
Testing Anti-lock Brake (ABS) Sensors: A Professional Perspective
Testing an anti-lock brake (ABS) sensor requires a methodical approach and specialized tools. A visual inspection should be the first step, checking for obvious damage such as cracks, corrosion, or loose wiring to the sensor and its connector. However, visual inspection alone is insufficient to determine functionality. A proper diagnostic check requires the use of an OBD-II scanner capable of reading ABS system codes. These scanners can retrieve specific trouble codes (DTCs) related to individual wheel speed sensors, providing a more precise indication of the sensor’s malfunction. If a DTC points to a specific sensor, further testing might involve using a digital multimeter to check for continuity and signal integrity within the sensor circuit. This necessitates understanding the sensor’s wiring diagram and proper testing procedures to avoid damage to the vehicle’s electrical system. Finally, a professional-grade oscilloscope may be needed to analyze the sensor’s output signal waveform, which should exhibit a characteristic pattern of fluctuating voltage representing wheel speed. Any deviation from the expected waveform often indicates a faulty sensor.
It’s crucial to remember that working on the ABS system requires a thorough understanding of automotive electronics and safety procedures. Improper testing or repairs can compromise the vehicle’s braking system, potentially leading to dangerous consequences. If you lack the necessary expertise or equipment, it’s strongly recommended to seek assistance from a qualified automotive technician. Attempting to diagnose or repair an ABS sensor without proper training and tools can result in misdiagnosis, further damage to the vehicle, and compromise safety.
People Also Ask: Testing Anti-lock Brake Sensors
How do I know if my ABS sensor is bad?
Symptoms of a Faulty ABS Sensor
A malfunctioning ABS sensor may present itself through several symptoms. The most obvious indication is the illumination of the ABS warning light on the instrument panel. This light indicates a problem within the ABS system, but doesn’t necessarily pinpoint the specific faulty component. Other potential symptoms include a spongy or unresponsive brake pedal feeling (especially during hard braking), pulsating or vibrating brake pedal, and ABS system malfunctioning during braking events. It’s important to note that these symptoms might not always be directly attributable to a single faulty sensor and could indicate other issues within the braking system. Therefore, proper diagnostics are vital to determine the root cause.
Can I test an ABS sensor with a multimeter?
Testing ABS Sensors with a Multimeter
While a multimeter can be used as part of the diagnostic process, it’s not sufficient on its own to definitively determine if an ABS sensor is faulty. A multimeter can measure the sensor’s resistance (continuity), but this only checks for an open circuit. A faulty sensor might still exhibit continuity while failing to produce the correct signal. A functioning sensor will present a specific resistance within the manufacturer’s specifications. A multimeter can also be used to check for voltage at the sensor connector, ensuring the appropriate voltage is reaching the sensor. However, the most comprehensive test involves analyzing the signal waveform with an oscilloscope, which is beyond the capabilities of a basic multimeter.
How much does it cost to replace an ABS sensor?
Cost of ABS Sensor Replacement
The cost of replacing an ABS sensor varies significantly depending on the vehicle make and model, the sensor’s location (front or rear wheels), the labor rates of the repair shop, and whether any additional repairs are required. Parts themselves can range from relatively inexpensive to quite costly, depending on the vehicle and the brand of the replacement sensor. Labor costs will be added on top of the parts cost. It’s advisable to obtain multiple quotes from reputable repair shops to get a better understanding of the potential expense before proceeding with any repairs.
