Accurately diagnosing air conditioning system malfunctions requires a methodical approach, and understanding the role of the pressure switch is paramount. This often-overlooked component acts as a crucial safety device and operational regulator within your HVAC system. A faulty pressure switch can lead to a cascade of problems, ranging from inefficient cooling to complete system failure, resulting in discomfort and costly repairs. Therefore, mastering the art of testing an AC pressure switch is a valuable skill for both seasoned HVAC technicians and discerning homeowners keen on preventative maintenance. This process, while requiring some basic understanding of electrical principles and safety precautions, is surprisingly straightforward when approached systematically. Furthermore, by employing the correct testing methods, you can confidently determine the switch’s functionality and avoid unnecessary replacements, saving both time and money. This guide will walk you through the steps, ensuring a clear and comprehensive understanding of how to effectively test your AC pressure switch, enabling you to restore optimal cooling performance to your system.
Before commencing any testing, it is absolutely crucial to prioritize safety. First and foremost, disconnect the power supply to the air conditioning unit. This is a non-negotiable step to prevent electrical shock and injury. Failure to do so could have severe consequences. Secondly, ensure you have the appropriate tools: a multimeter capable of measuring both voltage and continuity, a set of insulated screwdrivers, and possibly a pressure gauge depending on the testing method employed. Furthermore, it is advisable to consult your air conditioning unit’s service manual, as the specific location and wiring of the pressure switch can vary among models. Once the power is disconnected, carefully locate the pressure switch; it’s typically found near the compressor or on the refrigerant lines. Now, begin by visually inspecting the switch for any signs of physical damage, such as loose wires, corrosion, or cracks. These visual cues can provide valuable preliminary information. Subsequently, prepare your multimeter for continuity testing. Set it to the “continuity” setting, which is usually represented by a diode symbol or the letters “Ω” (ohm) with a sounder. Then, carefully connect the multimeter leads across the pressure switch terminals. A continuous beep or a reading close to zero ohms indicates that the switch is closed and functioning correctly at that pressure. However, remember that this only tests the switch’s electrical continuity and doesn’t account for the pressure threshold at which it should close or open; further testing might be required using a pressure gauge to simulate the operational pressures.
In addition to continuity testing, a more comprehensive evaluation involves simulating the operational pressure range of the AC system. This requires using a pressure gauge to apply pressure to the refrigerant lines connected to the pressure switch. Consequently, you will be able to observe the switch’s response to varying pressure levels. Consult your AC unit’s specifications to identify the low-pressure and high-pressure thresholds at which the switch should activate. As you gradually increase the pressure, monitor the switch’s response. It should change states (open to closed or vice-versa) at the specified pressure points. Moreover, if the switch fails to activate at the designated pressures, it indicates a malfunction. Conversely, if the switch activates outside of the specified range, it also suggests a problem which could be related to the pressure switch itself or another component affecting system pressure. After completing the pressure test, carefully release the pressure from the lines. Remember to always exercise caution when working with refrigerant lines. Once the testing is complete, and assuming the pressure switch needs replacing, ensure you acquire a replacement part that matches the original specifications to avoid compatibility issues. Finally, reconnect the power and verify proper system functionality following any repair or replacement of components.
Gathering Necessary Tools and Safety Precautions
Gathering Necessary Tools
Before you begin testing your AC pressure switch, it’s crucial to gather the right tools. This ensures a smooth and safe testing process. Improper tools can lead to inaccurate readings or even damage to your system. Let’s break down the essentials:
Essential Tools:
First and foremost, you’ll need a multimeter. This is the workhorse of the operation, allowing you to measure voltage and continuity. Make sure your multimeter is capable of measuring both AC and DC voltage, as well as resistance (ohms). A digital multimeter is generally preferred for its ease of use and precise readings. Don’t settle for a cheap, unreliable model; a quality multimeter is a valuable investment for any DIY enthusiast working with electrical systems.
Next, you’ll need a set of appropriately sized wire jumpers. These will be used to temporarily bypass the pressure switch during testing. Choose jumpers that are appropriately sized for the terminals on your switch, ensuring a secure connection. Avoid using wires that are too thin, as this could lead to overheating and potential hazards.
A vacuum gauge can be helpful, though not strictly necessary for a basic pressure switch test. If you suspect a problem with your system’s refrigerant charge, a vacuum gauge can confirm whether there’s a leak or insufficient refrigerant. This tool aids in understanding the broader context of the AC system’s pressure and performance.
Finally, you might find a wiring diagram beneficial. A wiring diagram for your specific AC unit will clearly show the connections to the pressure switch, making identification and testing much easier. You can often find these diagrams online or in the owner’s manual for your air conditioning unit.
Optional, but Helpful Tools:
While not essential, having safety glasses and insulated gloves will enhance your safety during the testing process. Working with electrical components always carries a degree of risk, and these precautions can mitigate potential injury from electrical shocks or accidental contact with sharp objects.
Safety Precautions
Working with refrigerant and electrical components requires caution. Always prioritize safety. Before starting any work, disconnect the power supply to the AC unit at the breaker box. This prevents accidental electrical shocks and protects you from unexpected operation of the system during testing.
Next, take necessary precautions when handling refrigerant. If you suspect a refrigerant leak, proper ventilation is crucial. Refrigerant can be harmful if inhaled in large quantities. Ensure adequate ventilation in the area. Also, be mindful of potential sharp edges or moving parts within the AC unit; avoid reaching blindly into confined spaces.
Always refer to your AC unit’s manual for specific safety instructions. Manufacturer guidelines provide the most accurate and relevant safety procedures for your particular model. If you are uncomfortable performing this test yourself, consult a qualified HVAC technician. Safety is paramount.
| Tool | Purpose | Importance |
|---|---|---|
| Multimeter | Measures voltage, continuity, and resistance. | Essential |
| Wire Jumpers | Temporarily bypass the pressure switch. | Essential |
| Vacuum Gauge | Checks refrigerant levels. | Optional, but helpful |
| Wiring Diagram | Provides a visual reference for connections. | Helpful |
| Safety Glasses & Insulated Gloves | Protects against electrical shocks and sharp objects. | Highly Recommended |
Locating the AC Pressure Switch
Finding your air conditioning system’s pressure switch might seem daunting, but with a little knowledge and patience, it’s a manageable task. The location varies significantly depending on the make, model, and year of your air conditioner, as well as whether it’s a window unit, a central air system, or a heat pump. There’s no single, universally applicable location. However, we can provide some helpful strategies to guide your search.
Understanding the Pressure Switch’s Role
Before we start the hunt, it’s important to understand what the pressure switch does. This small but crucial component acts as a safety device, protecting your compressor from damage caused by insufficient refrigerant pressure. If the refrigerant pressure drops too low (due to a leak, for example), the pressure switch will open, interrupting the power to the compressor and preventing it from running. This prevents costly repairs or complete system failure. Conversely, if the pressure gets too high, it will also trip the switch, safeguarding against overpressure situations. Therefore, locating and testing this component is key to maintaining the health of your air conditioning system.
Common Locations of the AC Pressure Switch
The most common areas to look for the AC pressure switch are those easily accessible near the refrigerant lines. In many window units, you’ll find it directly on the back panel, often near the electrical components and visible once you remove the unit’s outer casing. In central air systems, things get a bit more complex. The pressure switch is usually located within the outdoor unit (the condenser), but it might also be found near the evaporator coil inside the home, although this is less common.
Identifying Visual Clues
The pressure switch itself isn’t always easy to identify at first glance. However, it typically features several key characteristics: It’s relatively small, usually cylindrical or cube-shaped, and often has two or more electrical wires connected to it. You might also find a small pressure line connected to it, running from either the evaporator or the condenser coil. Sometimes it will have a label indicating its function, but don’t count on it. Be methodical and carefully examine the components close to the refrigerant lines in your system.
Using Your System’s Documentation
A significant time saver is to consult your air conditioner’s owner’s manual. The manual should provide detailed diagrams and schematics indicating the location of various components, including the pressure switch. If you no longer possess the manual, you might be able to find a digital version online by searching for your air conditioner’s make, model, and serial number. Even a simple diagram can greatly assist in locating the switch in complex system layouts.
Consulting a Professional
If you’re still struggling to find the pressure switch after a thorough search, don’t hesitate to contact a qualified HVAC technician. They possess the expertise and tools necessary to quickly identify the pressure switch and perform the necessary checks to ensure your air conditioner operates safely and effectively. This will prevent further damage and potential safety concerns.
| Possible Location | Description | How to Access |
|---|---|---|
| Rear of Window Unit | Often visible after removing the unit’s external cover. | Remove the cover carefully, following any instructions provided by the manufacturer. |
| Outdoor Condenser Unit (Central AC) | Usually located near the refrigerant lines and electrical connections. | Access the unit’s internal components cautiously. Refer to the owner’s manual for guidance. |
| Near Evaporator Coil (Less Common) | Inside the home, often in a less accessible location. | This location often requires professional assistance. |
Understanding AC Pressure Switch Functionality
How an AC Pressure Switch Works
The AC pressure switch, a vital component in your air conditioning system, acts as a safety and control device. Its primary function is to monitor the pressure within the refrigerant lines of your AC unit. This pressure, measured in pounds per square inch (PSI), is directly related to the refrigerant’s state – liquid or vapor. Proper refrigerant pressure is essential for efficient and safe operation. Too much pressure (high-pressure cut-out) can damage components, while too little (low-pressure cut-in) signifies insufficient refrigerant, leading to poor cooling or system damage. The switch uses a diaphragm, a flexible membrane, sensitive to pressure changes. This diaphragm is connected to a set of electrical contacts. When the pressure reaches a predetermined threshold, the diaphragm moves, causing the contacts to open or close, activating or deactivating the compressor accordingly.
Identifying the AC Pressure Switch
Locating the pressure switch in your air conditioning system is typically straightforward. It’s usually found near the compressor or on the refrigerant lines themselves, often easily identifiable by its electrical connections and a small pressure line attached. The switch itself is usually compact and may be cylindrical or rectangular in shape. Depending on your system’s manufacturer and model, its appearance may vary slightly, but its location remains fairly consistent.
Testing the AC Pressure Switch: A Detailed Guide
Testing an AC pressure switch requires caution and, ideally, some knowledge of air conditioning systems. Improper handling can expose you to refrigerant, which is harmful. Before attempting any test, always turn off the power to the air conditioner at the breaker box. This is paramount for your safety and to prevent accidental damage to the system.
The most common methods of testing involve using a multimeter and a pressure gauge. First, visually inspect the switch for any signs of damage, such as loose wiring, corrosion, or physical cracks. If any damage is visible, the switch likely needs replacement. If the switch appears sound, proceed with the electrical test. Using a multimeter set to the ohms setting, check for continuity between the terminals of the switch. Consult the schematic diagram for your specific AC unit to identify the correct terminals; they are usually marked. The readings will vary depending on the pressure applied; a table below shows what readings you would expect for a high-pressure and low-pressure cut-off switch.
| Pressure Condition | Expected Multimeter Reading (Ohms) | Compressor Status |
|---|---|---|
| Low Pressure (Below Cut-in Pressure) | Open Circuit (Infinite Resistance) | Off |
| Normal Operating Pressure | Closed Circuit (Near Zero Resistance) | On |
| High Pressure (Above Cut-out Pressure) | Open Circuit (Infinite Resistance) | Off |
To test the pressure aspect, you’ll need a pressure gauge and ideally a refrigerant charging manifold. Carefully connect the pressure gauge to the switch’s pressure port, ensuring a leak-free connection. Slowly increase the pressure using the charging manifold (or other appropriate method, though this is more complex), observing the switch’s response as the pressure approaches the specified cut-in and cut-out pressures (these pressures are typically printed on the switch itself or can be found in the AC unit’s manual). At the specified pressures, the multimeter reading should change, indicating that the switch is functioning correctly. If the switch doesn’t react to the pressure changes, it’s likely faulty and needs replacement. Always remember to handle refrigerants with extreme care and follow all safety precautions. If you are not comfortable performing these tests, contact a qualified HVAC technician.
Preparing the Testing Environment
Gathering Your Tools and Equipment
Before you even think about touching your AC pressure switch, make sure you’ve got everything you need. This will make the process smoother and safer. You’ll need a few essential tools: a multimeter (capable of reading both AC and DC voltage, and ideally resistance), a set of insulated screwdrivers (various sizes, to accommodate different screw types), a pressure gauge compatible with your AC system’s refrigerant (R-22, R-134a, etc. – check your system’s specifications!), and possibly some safety glasses and gloves. Having these tools readily available prevents interruptions during the testing procedure. Remember, safety first!
Disconnecting Power
This is absolutely crucial. Before you start anything else, turn off the power to your air conditioning unit. This usually involves switching off the breaker at your electrical panel that controls the AC unit. Double-check that the power is off by using a non-contact voltage tester on the wires leading to the unit. This isn’t just a precaution; it’s a safety requirement. Working on electrical components with power still on is extremely dangerous and could result in serious injury or death.
Accessing the AC Pressure Switch
The location of your AC pressure switch varies depending on the make and model of your air conditioning system. Consult your unit’s wiring diagram or owner’s manual for precise location. It’s often found near the compressor or on the refrigerant lines. Once you’ve located it, carefully remove any panels or covers that obstruct access. Take pictures as you go if you’re not familiar with the disassembly process, to aid in reassembly. Remember to be gentle to avoid accidental damage.
Understanding Pressure and Safety Precautions (Detailed)
System Pressures
Before you begin testing, it’s vital to understand the pressures involved. Refrigerant systems operate under high pressure. Improper handling can lead to serious injury from leaks or refrigerant exposure. The pressure in your system will vary depending on the refrigerant used and the operating conditions. Always refer to the manufacturer’s specifications for your specific AC system to determine the safe operating pressure ranges. Attempting to test the switch with the system under significantly higher or lower pressure than the specified range could damage the system and is potentially unsafe.
Refrigerant Safety
Many refrigerants are harmful if inhaled or exposed to skin. Always work in a well-ventilated area. If you are unsure of the type of refrigerant in your system, it is best to err on the side of caution and treat it as potentially hazardous. Avoid direct contact and wear appropriate safety equipment. If a leak occurs, evacuate the area and contact a qualified HVAC technician immediately. A small leak can quickly escalate into a major problem and necessitate professional repair.
Using a Pressure Gauge
When using a pressure gauge, ensure it’s compatible with the refrigerant type in your AC system. Connect the gauge to the appropriate port according to the system’s specifications, taking care not to overtighten the connection. Observe the gauge reading carefully to monitor system pressure. Remember, high-pressure systems are dangerous; proceed with caution and consult a qualified professional if you are uncertain about any aspect of the process.
| Refrigerant Type | Typical Operating Pressure Range (psi) | Safety Precautions |
|---|---|---|
| R-22 | Variable, consult manufacturer’s specifications | Highly toxic; avoid inhalation and skin contact. |
| R-134a | Variable, consult manufacturer’s specifications | Slightly toxic; avoid inhalation and skin contact. |
| R-410A | Variable, consult manufacturer’s specifications | Avoid inhalation and skin contact. |
Preparing the Multimeter
Set your multimeter to the appropriate setting for testing continuity (usually represented by a symbol resembling a diode). This allows you to check the electrical path within the switch. Make sure the probes are securely connected to the multimeter, and that the leads are properly insulated to prevent electrical shocks. A correctly calibrated multimeter is essential for obtaining accurate readings.
Using a Manifold Gauge Set to Check Pressure
Understanding Your AC System’s Pressure
Before diving into testing, it’s crucial to understand that your air conditioning system operates within specific pressure ranges. These ranges vary depending on the refrigerant used (typically R-134a or R-1234yf) and the ambient temperature. A low pressure indicates a potential leak, insufficient refrigerant, or a problem with the compressor. Conversely, high pressure could point to a restricted system, a faulty compressor, or a condenser issue. Consulting your vehicle’s service manual is essential to determine the correct pressure ranges for your specific AC system. Ignoring these ranges and proceeding blindly can lead to further damage.
Gathering Your Tools
To accurately test your AC pressure switch, you’ll need a few essential tools. First and foremost, you need a manifold gauge set. This set includes hoses with connections for low and high-pressure ports on your AC system, along with gauges that display the pressure readings in PSI (pounds per square inch). Additionally, you will need a set of appropriately sized wrenches or sockets to access the low and high pressure ports on your vehicle’s AC system. Safety glasses are also highly recommended, as working with refrigerant can involve potential hazards. Remember to always follow safety precautions outlined in your vehicle’s manual and the instructions that came with your manifold gauge set.
Locating the Low and High Pressure Ports
Your vehicle’s AC system typically has two service ports: one for low-pressure and one for high-pressure readings. These ports are usually capped off with protective caps. The low-pressure port is often colored blue, while the high-pressure port is typically red. These color codes help avoid confusion and ensure you connect the hoses to the correct ports on your manifold gauge set. Refer to your vehicle’s service manual or online resources if you’re having trouble locating these ports. Incorrect connections can lead to inaccurate readings and potential damage to your AC system.
Connecting the Manifold Gauge Set
Once you have located the low and high pressure ports, carefully remove the protective caps. Connect the hoses from your manifold gauge set to their respective ports, making sure the connections are secure and leak-free. Ensure that the manifold gauge set is properly turned on and that the valves on the gauges are closed. It’s crucial to avoid creating any leaks during this process, as refrigerant leaks can cause significant damage to the environment and your vehicle’s AC system. Use a small amount of appropriate lubricant to assist with the connections if needed, making sure to wipe away any excess.
Performing the Pressure Test (Detailed explanation):
With the manifold gauge set connected, turn on your vehicle’s air conditioning system and set it to its coldest setting. Observe the pressure readings on the gauges. They should stabilize within a few minutes. Now, let’s break down how to interpret the readings. The low-pressure side usually operates within the range of 25-45 PSI when the compressor is running (the exact range will depend on the refrigerant and ambient temperature). If the pressure is significantly lower, you may have a refrigerant leak, a compressor problem, or a restricted system. A high-pressure reading that is considerably higher than the recommended range (usually 150-250 PSI) suggests a potential blockage in the system, a problem with the condenser, or a faulty compressor. Compare your readings to the specified ranges in your vehicle’s service manual. If your readings fall outside the acceptable range, further diagnostics will likely be necessary.
Here’s a table summarizing the typical pressure ranges:
| Pressure Side | Typical Range (PSI) | Possible Issues if Outside Range |
|---|---|---|
| Low Pressure | 25-45 (with compressor running) | Refrigerant leak, compressor issue, restricted system |
| High Pressure | 150-250 (with compressor running) | Blockage in the system, condenser problem, faulty compressor |
Remember, these are general guidelines. Always refer to your specific vehicle’s service manual for precise pressure ranges. If you are unsure about any aspect of this procedure, it is always best to consult a qualified automotive technician to avoid causing further damage to your AC system.
Interpreting Low-Side and High-Side Pressure Readings
Understanding AC System Pressure
Your air conditioning system relies on precise refrigerant pressures to function correctly. These pressures, measured on the low and high sides of the system, are crucial indicators of its health. The low-side pressure reflects the refrigerant pressure before it enters the compressor, while the high-side pressure indicates the pressure after compression. These readings, when compared to manufacturer specifications, provide valuable insights into potential problems. Always consult your system’s specific specifications for accurate pressure ranges, as they can vary considerably depending on the refrigerant used and the system’s design.
Locating the Low-Side and High-Side Service Ports
Before you begin any testing, it’s essential to correctly locate the low-side and high-side service ports on your AC unit. These ports are typically capped and located near the condenser unit’s components. The low-side port is usually smaller in diameter and will have a slightly lower pressure reading compared to the high-side. The high-side port is generally larger. Using the wrong port can damage your gauge set and potentially the system itself. Consult your system’s service manual or a qualified technician if you are unsure about their location.
Gathering Necessary Tools
Testing AC system pressures requires a few essential tools. Primarily, you’ll need a set of AC gauges, specifically designed to withstand the pressures and refrigerants involved. These gauge sets usually include hoses and adaptors for different types of service ports. You’ll also want a thermometer to measure ambient temperature, as it significantly impacts pressure readings. Safety glasses and gloves are vital to protect yourself from potential hazards during the testing process.
Preparing for Pressure Readings
Ensure the AC system is running while taking pressure readings. The system needs to be fully operational to provide an accurate reflection of its refrigerant levels and internal pressure. Also, remember to take readings in a safe and stable environment, avoiding any obstructions that may cause accidental damage to the equipment. Check your equipment to make sure it is properly set up to take readings from your system.
Reading the Gauges
Once connected, carefully observe the readings on both the low-side and high-side gauges. These gauges usually display pressure in PSI (pounds per square inch). Note down both readings and the ambient temperature. Remember, the pressures will fluctuate slightly, so take several readings over a short period to obtain an average. Compare these readings to the manufacturer’s specifications found in your system’s manual.
Interpreting Low-Side and High-Side Pressure Readings (Detailed)
Accurate interpretation of low-side and high-side pressures is crucial for diagnosing AC problems. Low-side pressure reflects the refrigerant’s pressure before entering the compressor. A significantly low reading might indicate a refrigerant leak, a restricted evaporator coil (due to ice or dirt), or a faulty metering device. Conversely, an excessively high low-side pressure could point to a compressor problem, a blocked expansion valve, or an overcharge of refrigerant. The high-side pressure, representing the pressure after compression, provides additional clues. A high high-side pressure could indicate a restricted condenser coil (due to dirt, debris, or poor airflow), compressor issues, or a system overcharge. A low high-side pressure might suggest a refrigerant leak, insufficient refrigerant, or a problem with the compressor. The relationship between the low-side and high-side pressures is equally important. A significant pressure difference between them – much higher high-side compared to low-side – is frequently an indicator of a restriction somewhere in the system.
| Problem | Low-Side Pressure | High-Side Pressure | Possible Cause |
|---|---|---|---|
| Refrigerant Leak | Low | Low | Leak in the system |
| Restricted Evaporator Coil | Low | Normal or High | Ice buildup, dirt, or debris |
| Compressor Problems | High | Low or Normal | Faulty compressor |
| Restricted Condenser Coil | Normal | High | Dirt, debris, or poor airflow |
| System Overcharge | High | High | Too much refrigerant |
Analyzing these readings in conjunction with other diagnostic techniques allows for a more comprehensive assessment of the AC system’s condition. If you’re uncertain about the interpretation of your readings or the subsequent repair, it’s always best to seek assistance from a qualified HVAC technician.
Identifying a Faulty AC Pressure Switch Through Pressure Readings
Understanding AC Pressure Switch Function
Before diving into testing, let’s understand the AC pressure switch’s role. This crucial component acts as a safety device and system controller within your air conditioning system. It monitors the refrigerant pressure within the system and activates or deactivates the compressor based on predetermined pressure levels. A low-pressure switch prevents the compressor from running when refrigerant levels are too low, safeguarding against damage. Conversely, a high-pressure switch protects against excessively high pressures that can indicate problems like blockages or refrigerant overcharging. Both switches are vital to the safe and efficient operation of your AC unit.
Gathering Necessary Tools
Testing the AC pressure switch requires specific tools. You’ll need a manifold gauge set, which consists of hoses, gauges to measure high and low-side pressures, and connections for your AC system’s service ports. A digital multimeter can also be beneficial for verifying the switch’s electrical continuity. Remember to consult your AC unit’s manual for proper service port locations. Safety glasses and gloves are crucial for personal protection against potential refrigerant leaks or sharp edges.
Locating the AC Pressure Switch
The AC pressure switch’s location varies depending on the AC unit’s make and model. It’s usually found near the compressor or on the refrigerant lines themselves. Check your AC unit’s manual for the exact location. Sometimes, it might be hidden behind panels or shrouds, requiring removal for access. Take care during this process to avoid damaging any wiring or components.
Preparing for Pressure Readings
Before taking any readings, ensure the AC system is turned off and the power is disconnected. This prevents accidental shock and allows the system to stabilize. Allow sufficient time for the refrigerant to settle, as readings can be inaccurate if the system is still running or recently shut down. Once the power is off and the system is stable, you can attach the manifold gauge set to the appropriate service ports (low-side and high-side) on the AC unit.
Taking Low-Side Pressure Readings
Connect the low-pressure hose from your manifold gauge set to the low-side service port of the AC system. Turn on the AC unit, allowing it to run briefly to build pressure. Observe the low-side pressure gauge. The reading should fall within the manufacturer’s specified range for your particular unit. If the pressure is abnormally low, it might indicate a refrigerant leak or a problem with the evaporator coil. Consult your AC unit’s manual for the normal operating pressure range.
Taking High-Side Pressure Readings
Next, connect the high-pressure hose to the high-side service port. Again, observe the reading on the high-side pressure gauge. High-side pressure should also fall within the manufacturer’s specified range. An abnormally high pressure could indicate a blockage in the condenser coil, a compressor problem, or an overcharge of refrigerant. Remember that these pressures are interconnected; low-side pressure affects high-side pressure and vice-versa. An imbalance might suggest a significant problem requiring professional attention.
Interpreting Pressure Readings and Testing the Switch (Detailed)
Accurate pressure readings are crucial for diagnosing a faulty pressure switch. First, consult your AC unit’s owner’s manual for the specified operating pressure ranges. These ranges will vary depending on the refrigerant type and AC unit model. Typically, a low-pressure cutoff occurs between 25-50 PSI (pounds per square inch), while high-pressure cutoffs are significantly higher, ranging from 250-350 PSI. Deviations outside these ranges could indicate a problem with the switch itself. If the compressor isn’t starting despite pressure being within the normal range, the switch might be faulty. To directly test the switch, disconnect the electrical wiring harness. Then, use a multimeter set to continuity mode to check if the switch is properly closing and opening at the specified pressure ranges. You can simulate these pressure changes using a regulated air source or inert gas. A functioning switch will show a closed circuit (continuity) at a low pressure and an open circuit at a high pressure. Be extremely careful handling refrigerant and high-pressure components.
| Pressure (PSI) | Expected Switch State | Possible Faults |
|---|---|---|
| Low (below 25-50 PSI) | Open Circuit (Compressor OFF) | Refrigerant leak, evaporator issues, faulty pressure switch |
| High (above 250-350 PSI) | Open Circuit (Compressor OFF) | Condenser blockage, compressor issues, faulty pressure switch, refrigerant overcharge |
| Normal Operating Range | Closed Circuit (Compressor ON) | Faulty pressure switch (if compressor not running) |
Remember that these values are approximate and should be compared to the exact specifications listed in your AC unit’s manual. Always prioritize safety. If unsure about any step, consult a qualified HVAC technician. Incorrect testing procedures can lead to injury or damage to the system.
Testing the Switch’s Electrical Continuity
Understanding the AC Pressure Switch’s Function
Before diving into the testing process, let’s briefly review the function of an AC pressure switch. This crucial component acts as a safety device and control mechanism within an air conditioning system. It monitors the pressure within the refrigerant lines. When the pressure reaches a predetermined level (typically the high-pressure cut-off or low-pressure cut-in), the switch either opens or closes an electrical circuit, signaling the compressor to start or stop. This prevents damage to the system caused by excessively high or low refrigerant pressure. A malfunctioning pressure switch can lead to inefficient operation, system damage, or even safety hazards.
Preparing for the Test
Safety is paramount when working with electrical components and refrigerant systems. Before commencing any testing, ensure the power to the AC unit is completely disconnected. This prevents accidental electrical shock. Next, you’ll need some basic tools: a multimeter (capable of measuring resistance), a set of wire leads for the multimeter, and possibly a small screwdriver (depending on the type of pressure switch). Remember to always consult your system’s service manual for specific instructions and safety precautions.
Identifying the Pressure Switch Terminals
Locate the pressure switch within your AC system. The exact location varies depending on the make and model. It’s typically found near the compressor or on a refrigerant line. Carefully examine the switch to identify the terminals. Most switches will have at least two terminals – one for power input and one for the output that controls the compressor. Some may have additional terminals for different pressure settings.
Setting Up the Multimeter
Your multimeter needs to be set to measure resistance (often denoted by Ω). This will allow us to check for continuity, or the presence of a complete electrical path between the terminals. The exact method for setting your multimeter to resistance mode will vary based on its make and model; consult your multimeter’s user manual for precise instructions.
Testing for Continuity: The Low-Pressure Cut-In
With the power to the AC unit still off, use the multimeter’s probes to test continuity between the terminals. If the switch is designed to close the circuit at low pressure (allowing the compressor to start), then you should create a low-pressure scenario by gently applying slight pressure (if possible). If the switch is functioning correctly, the multimeter will show a low resistance reading (approaching zero ohms), indicating a closed circuit.
Testing for Continuity: The High-Pressure Cut-Off
Conversely, to check the high-pressure cut-off, you’ll need to simulate high pressure (although this is more challenging without specialized equipment). If the system were under high pressure, a functioning switch would open the circuit. In this test, you should observe a high resistance reading (approaching infinity) on your multimeter, signifying an open circuit. Note that safely simulating high pressure can be extremely difficult, so relying on other tests in addition to this would be safer.
Interpreting the Results
The results of your continuity tests will tell you whether the switch is correctly opening and closing the circuit in response to simulated pressure changes. A consistent low resistance reading when it should be closed and a high resistance reading when it should be open indicates a properly functioning pressure switch. Conversely, inconsistent readings suggest a faulty switch needing replacement. It is advisable to consult a qualified HVAC technician for final confirmation of the pressure switch’s condition to ensure your safety and the proper maintenance of your system.
Advanced Troubleshooting and Considerations
Understanding Multiple Terminals
Some AC pressure switches have more than two terminals. These additional terminals might correspond to different pressure settings (e.g., a high-pressure cut-out, a low-pressure cut-in, and perhaps an auxiliary contact). Testing these additional terminals will require a deeper understanding of your specific AC system’s wiring diagram and pressure thresholds. Consult the manufacturer’s specifications or an HVAC technician if you encounter this complexity.
Using a Pressure Gauge
While the electrical continuity test is valuable, it’s important to remember that it only assesses the electrical functionality of the switch. To fully determine the switch’s operational status, you should also consider checking the actual pressures in your AC system. Use a pressure gauge to measure the high-side and low-side pressures. Compare these readings to the manufacturer’s recommended pressure ranges. Discrepancies might point towards a pressure switch problem or other issues within the system.
When to Call a Professional
If you’re uncertain about any step of the testing process, or if you are uncomfortable working with electrical components and refrigerant systems, it’s best to call a qualified HVAC technician. Attempting repairs without proper knowledge can lead to further damage to your air conditioning system or even personal injury. Professional assistance ensures the safety of yourself, your system, and proper diagnosis and repair.
| Test Condition | Expected Multimeter Reading (Resistance) | Switch Status |
|---|---|---|
| Simulated Low Pressure | Near 0 ohms (low resistance) | Closed Circuit |
| Simulated High Pressure | Near Infinity ohms (high resistance) | Open Circuit |
Troubleshooting the AC Pressure Switch
Understanding the AC Pressure Switch’s Role
Before diving into testing, let’s clarify the pressure switch’s crucial function in your air conditioning system. It’s a safety device and a critical component in the refrigerant cycle. The switch monitors the pressure of the refrigerant within the system. When the pressure drops too low (indicating a potential leak or other problem), the switch prevents the compressor from running, protecting it from damage. Conversely, when the pressure is within the safe operating range, the switch allows the compressor to engage, providing cool air.
Visual Inspection
Start with a simple visual inspection. Look for any obvious signs of damage to the pressure switch itself, such as cracks, corrosion, or loose wiring. A damaged switch may be the source of your AC troubles. Take note of the location of the switch—it’s usually connected to the refrigerant lines near the compressor. Pay close attention to the wiring connections—loose or corroded connections can lead to malfunctions.
Checking for Power
With the AC system off, carefully disconnect the electrical connector from the pressure switch. Use a multimeter to check for voltage at the switch terminals. If you find voltage present when the system *should* be off, this might indicate a problem with the switch’s internal circuitry or a fault elsewhere in the system’s control wiring. Remember to always disconnect the power before performing any electrical checks to ensure your safety.

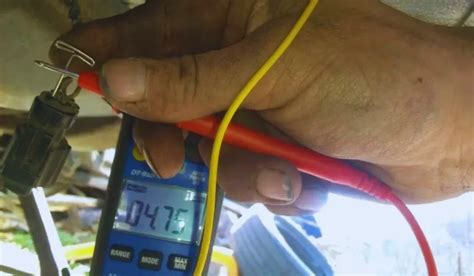

Testing with a Multimeter
A multimeter is your best tool for diagnosing a faulty pressure switch. First, set your multimeter to the continuity test mode. Next, touch the probes to the appropriate terminals on the pressure switch connector. Refer to your AC unit’s wiring diagram to identify the correct terminals. The switch should exhibit continuity (or show a closed circuit) when the pressure is above a certain threshold and no continuity (an open circuit) if the pressure is below this threshold. You can simulate this pressure change using a refrigerant pressure gauge if needed, but be extremely cautious when handling refrigerants.
Replacing the AC Pressure Switch
Safety Precautions
Before you begin any work on your air conditioning system, it’s crucial to prioritize safety. Turn off the power to the unit at the breaker box. Remember that working with refrigerants requires proper training and equipment. If you are uncomfortable performing this task, consult a qualified HVAC technician. Ignoring safety procedures can lead to serious injury or damage to your system.
Gathering Necessary Tools and Parts
You’ll need a few tools for this job: a new pressure switch (ensure it’s the correct type for your system), screwdrivers (possibly both Phillips and flathead), wire strippers/cutters (if you need to replace any wiring), and a multimeter (to test the new switch after installation).
Disconnecting the Old Switch
Once the power is off, carefully disconnect the wires from the old pressure switch. Take pictures or make notes of the wire connections to ensure correct reconnection. Use a wire labeler or tape to mark the wires for easy reference. Then carefully disconnect the refrigerant lines. This may involve removing a small bracket or unbolting a fitting. Again, take pictures to aid reassembly.
Installing the New Switch
With the old switch removed, install the new switch by following the reverse procedure of removal. Ensure the new switch is securely mounted and all connections are tight. Reconnect the refrigerant lines, ensuring they are snug and free of leaks.
Testing the New Switch and System
After installing the new switch, reconnect the power and turn the AC unit back on. Use your multimeter to check for continuity to confirm the new pressure switch is working correctly. Then, monitor your AC system’s operation to see if the problem is resolved. If issues persist after replacing the switch, further diagnosis may be necessary, and it’s best to call a qualified HVAC technician to investigate the underlying problem in your AC system.
Understanding Pressure Ranges
The pressure switch operates within specific pressure ranges, varying based on the refrigerant used and the AC system’s design. These ranges are usually detailed in the manufacturer’s specifications for your particular unit. Incorrectly setting or replacing the pressure switch can lead to compressor damage or inefficient cooling. Refer to the manufacturer’s documentation or consult a professional for the correct pressure settings for your model. Attempting to adjust pressure without proper knowledge and tools could be dangerous.
Typical Pressure Switch Specifications
| Refrigerant Type | Low Pressure Cut-in (psi) | High Pressure Cut-out (psi) | Differential Pressure (psi) |
|---|---|---|---|
| R-22 | 65-75 | 250-275 | 180-200 |
| R-410A | 50-60 | 280-300 | 220-240 |
| R-134a | 55-65 | 220-240 | 165-175 |
Note: These are approximate values and can vary significantly depending on the specific AC unit and its design. Always refer to the manufacturer’s specifications for accurate pressure ranges.
Remember that these pressure values are crucial for the proper and safe operation of your AC system. Incorrectly set pressure switches can cause the compressor to operate improperly or even lead to failure, potentially costing you significant repair expenses. Always prioritize safety and seek professional assistance when uncertain.
Testing an AC Pressure Switch: A Professional’s Perspective
Testing an AC pressure switch requires a methodical approach to ensure both accuracy and safety. Before commencing any testing, always disconnect the unit from the power supply to prevent electrical shock. This is paramount to personal safety. The method employed depends on the type of pressure switch; however, a common approach involves using a pressure gauge capable of measuring the pressure range specified for the switch. This gauge should be connected to the switch’s pressure port, typically found on the side or bottom of the unit. The pressure is then carefully increased or decreased (depending on the switch’s design and the testing procedure) while observing the switch’s operational status. The switch should activate (close) at its designated high-pressure threshold and deactivate (open) at its designated low-pressure threshold. Any deviation from these specified pressure points indicates a faulty switch requiring replacement.
The use of a multimeter can also be incorporated into the testing process. By connecting the multimeter’s leads to the switch’s terminals, the continuity of the switch can be assessed. A closed switch should register a low resistance, indicating a completed circuit, whereas an open switch will show a high resistance or an infinite reading. This test verifies whether the switch is physically capable of making and breaking an electrical circuit. Remember, always consult the manufacturer’s specifications and relevant safety guidelines before performing any testing procedure, as improper testing can lead to inaccurate results and potential harm.
After the testing process, if the pressure switch is found to be faulty, its replacement should be carried out by a qualified technician. Improper installation can lead to system malfunction or safety hazards. The replacement process typically involves disconnecting the old switch, ensuring proper pressure port connections, and securely wiring the new switch according to the manufacturer’s guidelines.
People Also Ask: Troubleshooting Your AC Pressure Switch
How do I know if my AC pressure switch is bad?
Symptoms of a Faulty AC Pressure Switch
A malfunctioning AC pressure switch can manifest in several ways. Your air conditioning system might fail to start, cycle on and off erratically, or operate intermittently. The compressor may not engage, even when the system is demanding cooling. Conversely, the compressor may run continuously regardless of the cooling demand, leading to potential overheating and damage. Low refrigerant levels often coincide with pressure switch problems, as low pressure prevents the compressor from starting. In some cases, the system might be blowing warm air, indicating a lack of compressor engagement or insufficient refrigerant flow.
How can I test my AC pressure switch without a gauge?
Testing an AC Pressure Switch Without a Gauge (Limited Accuracy)
While a pressure gauge is the most accurate method, a rudimentary check can be performed without one. This approach offers limited accuracy and shouldn’t replace a proper gauge test. This involves visually inspecting the switch’s wiring and connections for any signs of damage or corrosion. You can then use a multimeter to check the switch’s continuity, as described previously. However, without confirming the actual pressure readings, determining the switch’s precise malfunction remains uncertain.
What is the normal pressure range for an AC pressure switch?
Typical AC Pressure Switch Pressure Ranges
The normal pressure range for an AC pressure switch varies considerably depending on the specific air conditioning system and refrigerant used. This information is crucial and should always be found on the switch itself or in the manufacturer’s specifications for the AC unit. It typically involves a low-pressure cut-off point and a high-pressure cut-out point to protect the compressor. Attempting to determine this without the manufacturer’s specifications is unsafe and unreliable.
